Product Details:
|
| Product Name: | Tabular Corundum 99% | Usage: | Porous Plugs |
|---|---|---|---|
| Bulk Density: | 3.57g/cm3 | Raw Material: | Alumina Powder |
| Cao Content (%): | 0 | Mgo Content (%): | 0 |
| High Light: | Tabular Corundum,Sintered Aluminum Oxide Granules,Refractory Aluminum Oxide Granules |
||

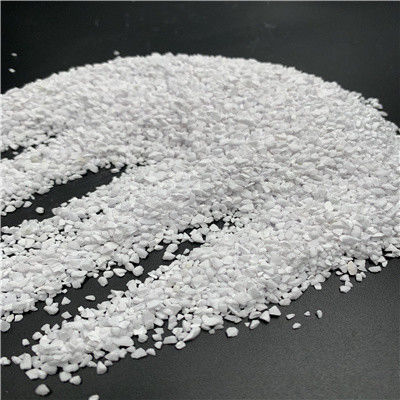

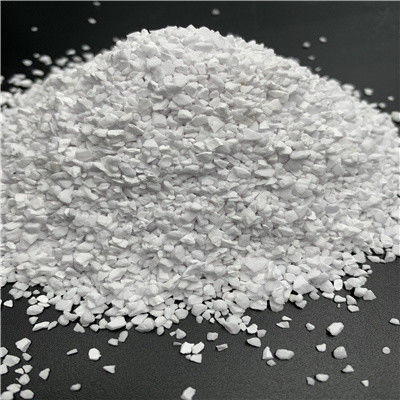

Refractory Grade Sintered White Tabular Corundum 99.5% for Porous Plugs
1. Tabular Alumina Introduction
Tabular Alumina(TA) is a pure sintered a α-alumina materials that has been fully densified by rapid-sintering without the use of sintering aids at temperature in excess 1900℃. TA has characteristic large, well developed hexagonal tablet shaped α-alumina crystals of up to 200μm length. The excellent thermal volume stability and thermal shock characteristics can be attributed to its specific microstructure: low open porosity and large crystals with closed spherical pores, which are entrapped upon re-crystallization during rapid-sintering.
2. Tabular Alumina Specifications
| Chmicals Composition | Unit | Grits | Powder |
| Al2O3 | % | ≥99.45 | ≥99.35 |
| Na2O | % | ≤0.40 | ≤0.40 |
| SiO2 | % | ≤0.09 | ≤0.12 |
| Fe2O3 | % | ≤0.07 | ≤0.09 |
3. Tabular Alumina General Advantages
| • High-density | • Low water absorption |
| • Extreme hardness | • High thermal conductivity |
| • High heat capacity | • High electrical resistance |
| • Excellent abrasion resistance | • Good resistance to thermal and mechanical shock |
| • Chemical inertness – resistant to most alkalis and mineral acids | |
| Standard sizes: -8, 3-6, 6-10, 6-14, 8-14, 14-28, 28-48, -14, -28, -48, -100, -325mesh, 5-10, 2-5, 3-6, 2-3, 1-3, 1-2, 0.5-1, 0.2-0.6, 0-1, 0-0.5, 0-0.3, 0-0.2, 0-0.045mm | |
4. Tabular Alumina Package
1. 25kg woven bag, 40 woven bags/jumbo bag
2. 25kg paper bag, 40 paper bags/pallet
3. 1MT/1.25MT Jumbo bag.
4. Packing can be customized according to customer's requirements
5. Tabular Alumina Applications
1) Refractory materials, furnace charge, aggregate, castable, rammed miscellaneous materials, plastic, pressing materials, projection materials, spray paint, vibration materials, refractory mud
2) Wear-resisting coating, refractory coating, wear-resisting machinery,
3) Smelting, casting, steel mills, power plants
4) Ceramic deburring, surface treatment
5) Firebrick, fireproof ceramics
6. Tabular Alumina Particle Sizes Available
Standard sizes: ½” - ¼”, ¼” -8, 3-6, 6-10, 6-14, 8-14, 14-28, 28-48, -14, -28, -48, -100, -325 mesh
5-10, 2-5, 3-6, 2-3, 1-3, 1-2, 0.5-1, 0.2-0.6, 0-1, 0-0.5, 0-0.3, 0-0.2, 0-0.045 mm
Other sizes available per customer's requirement.
