Product Details:
|
Product Name: | Garnet Sandblasting Sand | Garnet Content: | 95.2% |
---|---|---|---|
Application: | Dry And Wet Abrasive Blasting | Mesh: | 80 Mesh |
Melting Point: | 1300 | Hardness: | 7.5-8.1 Mohs |
High Light: | 7.5 Mohs Garnet Abrasive Sand,95.2% Garnet Abrasive Sand,Garnet Sandblasting Media |

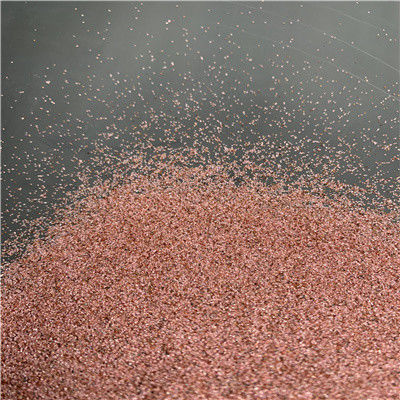

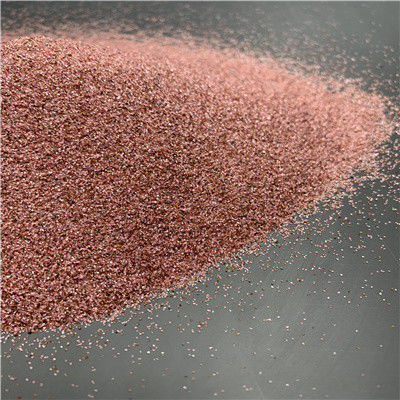

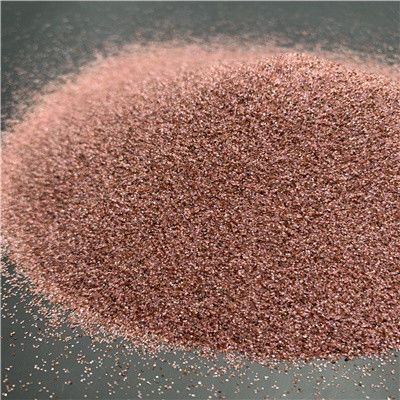

Abrasive Garnet Sand Water Filtration Media 80Mesh Sand Garnet for Dry and Wet Abrasive Blasting
1. Garnet Introduction
Garnet abrasive is one of the most versatile media for blast cleaning. Garnet abrasive is a naturally occurring silicate crystal. The harder types of garnet like almandine are utilized for more aggressive purposes and have a hardness on the Mohs size of about 6.5 to 7.5. Once refined, it is washed, prepared, and screened to the necessary size gradation for use as an abrasive.
2. Garnet Specifications
CHEMICAL COMPOSITION | TYPICAL PHYSICAL PROPERTIES | ||
SiO2 | 34-38% | Uniformity Coefficient | 1.33 |
Iron(Fe2O3 +FeO) | 25-33% | Hardness: | Mohs:7.5-8.0 |
AL2O3 | 17-22% | Melting Point: | Sublimes at 1300 ℃ |
CaO | 1-9% | Specific Gravity: | 3.8-4.1 g/cm3 |
MgO | 4-6% | Bulk density(LPD): | 1.8-2.1 g/cm3 |
MnO | 0-1% | Shape | Sub Angular |
Na2O | 0-1% | Chloride | <25ppm |
TIO2 | 0-1% | Acid Solubility(HCL) | <1% |
3. Garnet General advantages
4. Garnet Characteristics
Color | Type | Mohs Hardness | Production Process | Applications | Available Sizes |
Dark brown color garnet sand | Rock sand. | 8.0 | Crushing and washing process. | Sandblasting, rust removal, Water filtration, etc. | 8-14#,10-20#,16-20#,20-40#,30-60#,80# |
Brown color garnet sand (Red) | Rock sand | 7.5-8.0 | Crushing and washing process. We wash rock sand up to 6 times. So it’s of high purity. | Sandblasting, rust removal with low conductivity, water filtration, etc. | 8-14#,10-20#,16-20#,20-40#,30-60#,80#,120# |
Pink color garnet sand (light) | River sand | 7.5-8.0 | alluvial garnet sand was scouring and washing by river water. It is Cleaner and with less sharp edges than rock sand. | Sandblasting, water jet cutting with less blocking in nozzles. | 10-20#,20-40#,30-60#,80# |
Pink-red color garnet sand | Sea sand, | 8.0 | It is alluvial garnet sand. The sand source was formed by the ancient rock near the sea. So it’s very clean and with high purity. | Especially for water jet cutting without blocking in nozzles. | 60#,80# |
5. Garnet Applications
1) Sand blasting
Garnet abrasive’s hardness is moderate and have high bulk density. It have free silica and good toughness .It is the ideal "environmentally friendly" sand blasting materials
2) Free grinding
The Grinding grade garnet abrasive is applied to the picture tube, optical glass, monocrystalline silicon, lenses, watches and clocks, glass, crystal glass, jade and other fields of free grinding. It is widely used in domestic advanced abrasive materials.
3) Resin grinder
Garnet abrasive with the right color, good hardness, toughness, and be suitable for the type of particle cross-section and blade retention. It can be used as a substitute for 20%-30% filler corundum resin grinding tool.
4) Coated abrasives
Garnet abrasive are materials production of paper, gauze and other manufacturers of raw materials production
5) Functional filler
The garnet will be used mainly to automobile brake parts, special tires, special building products, etc., and can be used to the construction of the highway pavement, the runway, the wharf, the parking lot, the industrial floor, the sports field, etc.;
6. Garnet Paclage
1Ton/2200lbs bulk jumbo bag
2Ton/4400lbs bulk jumbo bag
40x25kg PP bags packed into 1Ton bag or pallet
