Product Details:
|
| Shape: | Ball | Material: | Fused Bauxite |
|---|---|---|---|
| Refractoriness: | 2050 Degree | Al2O3 Content: | 70-75% |
| SiO2 Content: | 8-20% | Bulk Density: | 1.95-2.05g/cm3 |
| Application: | Foundry Industry | ||
| High Light: | High Refractoriness Ceramic Foundry Sand,2.05g/cm3 Ceramic Foundry Sand,High Refractoriness AFS Sand |
||

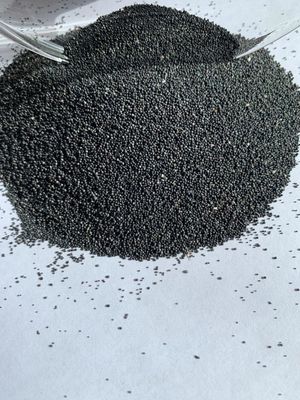

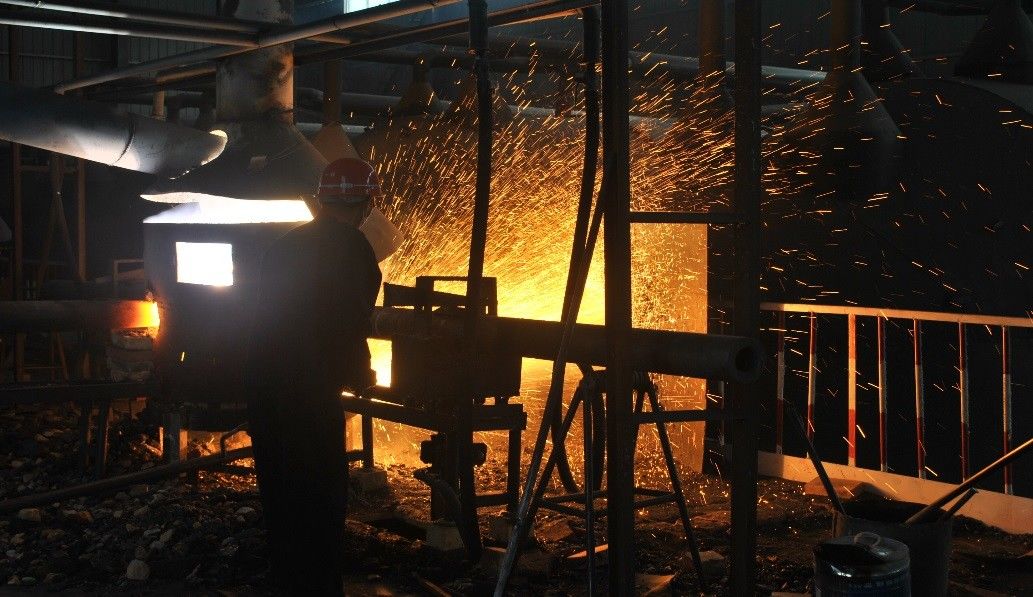

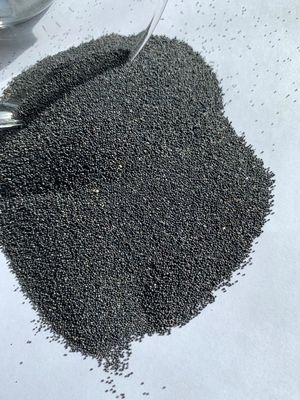

Ceramsite, also called as NFS CERAMSITE-Nice Foundry Sand, is kind of man-made spherical shape ceramic particles featured by high refractoriness, low thermal expansion made by spraying melted from the fused bauxite. It provides a simple and efficient way in the foundry industry to improving the quality of the castings, reducing the production cost and avoiding environmental pollution so it is much better than silica sand. And it is also good substitution to Chromite sand and Zircon sand because of its lower price. At the present, Ceramsite is acknowledged in the worldwide as the newest and the best ideal sand for the foundries and has a very wide feasibility of applications for the future development.
2. Ceramic Foundry Sand Specifications
| Unit | Al2O3 | SiO2 | Fe2O3 | TiO2 | CaO | MgO | K2O | Na2O |
| % | 75.36 | 17.72 | 2.16 | 3.23 | 0.43 | 0.35 | 0.33 | 0.08 |
3. Ceramic Foundry Sand General advantages
4. Ceramic Foundry Sand Particle Size Distribution
The particle size distribution can be custom-made according to any customer’s specific requirement.
| Code | 1700 | 850 | 600 | 425 | 300 | 212 | 150 | 106 | 75 | 53 | Pan | |
| 20-40 | 15-40 | 30-55 | 15-35 | ≤3 | 15-25 | |||||||
| 30-50 | ≤10 | 25-45 | 35-55 | 5-15 | ≤5 | ≤2 | 25-29 | |||||
| 40-70 | ≤10 | 25-45 | 20-40 | 5-25 | ≤7 | ≤5 | 35-39 | |||||
| 40-100 | ≤3 | 10-25 | 25-40 | 25-45 | 10-25 | ≤10 | ≤5 | 45-55 | ||||
| 50-100 | ≤10 | 10-30 | 30-50 | 15-35 | ≤15 | ≤5 | ≤2 | ≤1 | 55-65 | |||
| 50-140 | ≤8 | 10-25 | 20-45 | 20-45 | 5-20 | ≤7 | ≤2 | ≤1 | 60-70 | |||
| 70-140 | ≤10 | 10-25 | 25-45 | 15-35 | ≤15 | ≤5 | ≤2 | 75-85 | ||||
| 100-200 | ≤3 | 10-35 | 35-55 | 15-35 | ≤10 | ≤5 | 95-115 | |||||
| 140-270 | ≤5 | 5-25 | 40-60 | 25-40 | ≤15 | 155-175 | ||||||
| 6-20 | LFC Casting Ceramsite | |||||||||||
5. Ceramic Foundry Sand Characteristics
1. Low thermal expansion coefficient
2. High strength with good compressive strength and bending resistance ability and low broke rate.
3. Spherical shape, good flowability, easy to shakeout
4. Smooth surface, compact structure
5. Chemically neutral material
6. high-temperature resistance, good refractoriness
7. Recycle up to 10 times, highly cost-effective.
8. Save resin consumption with casting tech such as shell molding, Resin coated sand casting, Vacuum casting, etc.
6. Ceramic Foundry Sand Application Area and its advantage compare to traditional casting sand
| Applications | Grit Size | AFS SIZE |
| Foundry sand for Lost foam | 8-15#(10#)10-20#,20-30# | AFS25-35 |
| Filler sand | 30# | |
| No bake sand including furan resin /alkaline-phenolic resin molding and core making/ Pep set /Sodium-silicate bonded sand | 30-50#,40-70#,50-70#,70-140# |
AFS35-45,AFS25-35,AFS45-55, AFS55-65,AFS60-70,AFS70-80 |
| Shell molding, resin coated sand casting | 50-100#,70-140#,100-200# |
AFS55-65,AFS60-70,AFS70-80, AFS95-110 |
| Lost foam casting coating | 140-270#,-200# | |
| Molding sand alcohol-based coating | -200# | |
| 3D printing, precision casting, investment casting | -140# |
1. Shell molding
2. Precision Casting
3. Lost foam casting
4. Heavy steel casting
5. Resin coated sand casting
6. Vacuum casting
7. Investment casting
