Product Details:
|
| Material: | Sintered Mullite M70 | Al2O3 Content: | 69-72% |
|---|---|---|---|
| SiO2 Content: | 22-28% | Bulk Density: | 2.75% Min. |
| Refractoriness: | 1800 Degree Min. | Color: | Grey |
| Shape: | Grains Or Fine Powder | OEM: | Acceptable |
| High Light: | Sintered Al2O3 SiO2,Fine Al2O3 SiO2,Al2O3 SiO2 for Refractories |
||
Quality Sintered Mullite 47% 60% 70% for Shaped and Unshaped Refractories
1. Natural Sintered Mullite Introduction
Mullite also called Cyanite, Disthene, Kaopolite, Kyanite is a high-quality refractory raw material, and this type of mineral is relatively rare. Mullite is a mineral produced by aluminosilicates at high temperatures. Mullite is formed when aluminosilicates are artificially heated. Natural mullite crystals are slender, needle-like and radially clustered. Mullite is used to produce high temperature refractories. Mostly used as thermal barrier coatings in C / C composites, it is widely used. The mullite AI2O3-SiO2 elementary system is a stable binary solid solution under normal pressure. The natural mullite with the chemical formula of AI2O3-SiO2 is very few. It is usually artificially synthesized by sintering or electrofusion.
2. Natural Sintered Mullite Specifications
CHEMICAL PERFORMANCE INDEX
| Chemicals | M80 | M70 | M60 | M47 |
| Al2O3 % | 78-82 | 68-72 | 58-62 | 46-50 |
| Fe2O3 % | 1.6max | 1.5max | 1.5max | 1.5max |
| TiO2 % | 2.50max | 2.50max | 2.50max | 1.0max |
| SiO2% | 12-15 | 22-25 | 35-38 | 44-54 |
PHYSICAL PERFORMANCE INDEX
| Properties | M80 | M70 | M60 | M47 |
| B.D. g/cm3 | 2.85min | 2.75min | 2.65min | 2.58min |
| Water Absorption % | 3max | 3max | 3max | 3max |
| Refractoriness ℃ | 1850min | 1850min | 1850min | 1750min |
3. Natural Sintered Mullite General Advantages
High strength, good thermal stability, impact resistance, scouring resistance, wear resistance, long service life by the combined technology of low cement and adding superfine powder and efficient dispersant.
Excellent raw materials and high temperature performance, castable refractoriness reaches 1790 °C. Mixing by machine, convenient construction, the construction period is greatly shortened, and the economic benefit is remarkable.
4. Natural Sintered Mullite Characteristics
5. Natural Sintered Mullite Applications
Sintered Mullite is suitable for all kinds of flame furnace lining work, direct contact information with the flame (not contact information melt), other high temperature heat preservation and heat insulation equipment, such as:
1. The preparation of various lightweight refractory castable, spray coating, etc.;
2. Heating furnace, soaking furnace, heat treatment furnace, annealing furnace, ceramic, refractory products sintering furnace, the furnace wall;
3. Steam boiler, oil industry tube furnace, ethane cracking furnace lining;
4. All kinds of industrial furnace door, observation hole lining.
6. Natural Sintered Mullite Particle sizes Available

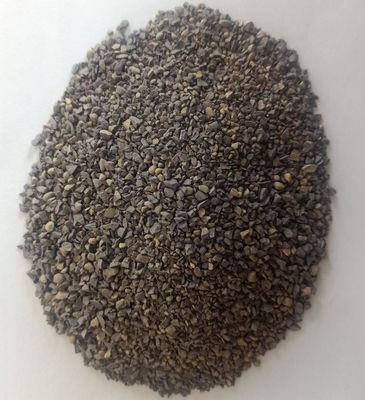

Size of powder: -200mesh,-270mesh,-325mesh.

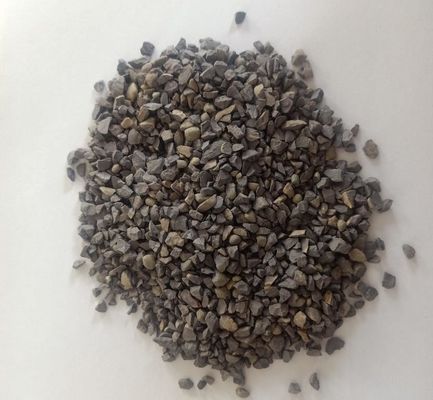

Size of particle: 0-1mm,1-3mm,3-5mm,5-8mm, 8-15mm, 0-5mm or as required.
