Product Details:
|
| Shape: | Sphere | Al2O3 Content: | 71-75% |
|---|---|---|---|
| SiO2 Content: | 8-20% | Bulk Density: | 1.95-2.07g/cm3 |
| Sand: | Bauxite Sand | Refractoriness: | 1850 Degree |
| High Light: | 1.95g/cm3 Ceramic Foundry Sand,AFS25 Ceramic Foundry Sand,1.95g/cm3 Bauxite Sand |
||

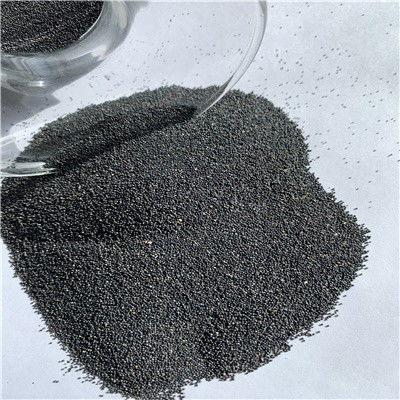

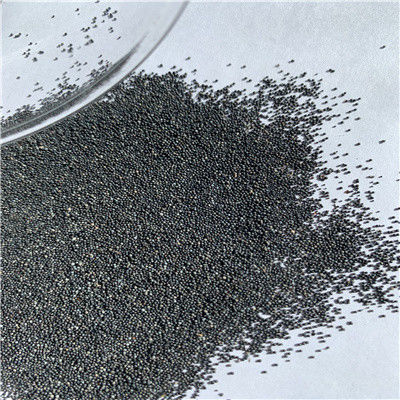

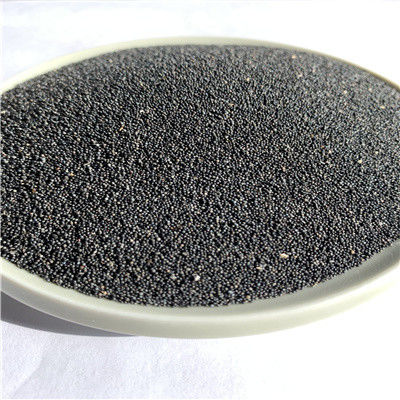

1. Ceramic Foundry Sand Introduction
Bauxite Casting Sand (also called ‘Ceramsite’) are innovative spherical casting sand developed in the Far East initially for the discerning Japanese markets. With the excellent casting property feedback and lower price. Ceramsite has already conquered the Japanese and Chinese markets, and being considered as a direct replacement for Chrome and Zircon casting grade Sands. Available in a variety of AFS sizes, The Ceramsite offers a “Chrome Free” option where environmental considerations are a real concern.
Our high quality Ceramisite sands are made by fusing, spraying, sieving and purifying high Alumina Calcined Bauxite. They can be used in casting all sizes of steel parts. The spherical shape produces high density material with excellent flow characteristics. The main chemical composition is Al2O3 which provides an excellent refractoriness and stability.
Ceramsite is ball-shaped, high heat-resistant, low heat dilating rate. it has advantage of cost and performance than Chromite sand and zircon sand that provide the effective ways to improve the quality of the foundry, cost-down and less damage to the environment.
2. Ceramic Foundry Sand Specifications
Shape: Sphere
Angle Factor: ≤1.15
Bulk Density: 1.95-2.05 (g/cm3)
Refractoriness: ≥1790℃
Thermal expansion: 0.14% (10 minutes under 1000℃)
Main Chemical composition (typical value as following table):
|
Unit |
Al2O3 |
SiO2 |
Fe2O3 |
TiO2 |
CaO |
MgO |
K2O |
Na2O |
|
% |
75.36 |
17.75 |
2.14 |
3.23 |
0.43 |
0.35 |
0.33 |
0.08 |
3. Ceramic Foundry Sand General advantages
High AI2O3 mineral composition
Regular spherical shape
100% recyclable
4. Ceramic Foundry Sand Particle Size Distribution
The particle size distribution can be custom-made according to any customer’s specific requirement.
|
Code |
1700 |
850 |
600 |
425 |
300 |
212 |
150 |
106 |
75 |
53 |
Pan |
|
|
20-40 |
|
15-40 |
30-55 |
15-35 |
≤3 |
|
|
|
|
|
|
15-25 |
|
30-50 |
|
≤10 |
25-45 |
35-55 |
5-15 |
≤5 |
≤2 |
|
|
|
|
25-29 |
|
40-70 |
|
|
≤10 |
25-45 |
20-40 |
5-25 |
≤7 |
≤5 |
|
|
|
35-39 |
|
40-100 |
|
|
≤3 |
10-25 |
25-40 |
25-45 |
10-25 |
≤10 |
≤5 |
|
|
45-55 |
|
50-100 |
|
|
|
≤10 |
10-30 |
30-50 |
15-35 |
≤15 |
≤5 |
≤2 |
≤1 |
55-65 |
|
50-140 |
|
|
|
≤8 |
10-25 |
20-45 |
20-45 |
5-20 |
≤7 |
≤2 |
≤1 |
60-70 |
|
70-140 |
|
|
|
|
≤10 |
10-25 |
25-45 |
15-35 |
≤15 |
≤5 |
≤2 |
75-85 |
|
100-200 |
|
|
|
|
|
≤3 |
10-35 |
35-55 |
15-35 |
≤10 |
≤5 |
95-115 |
|
140-270 |
|
|
|
|
|
|
≤5 |
5-25 |
40-60 |
25-40 |
≤15 |
155-175 |
|
6-20 |
LFC Casting Ceramsite |
|
||||||||||
5. Ceramic Foundry Sand Application Area and its advantage compare to traditional casting sand
|
Applications |
Grit Size |
AFS SIZE |
|
Foundry sand for Lost foam |
8-15#(10#)10-20#,20-30# |
AFS25-35 |
|
Filler sand |
30# |
|
|
No bake sand including furan resin /alkaline-phenolic resin molding and core making/ Pep set /Sodium-silicate bonded sand |
30-50#,40-70#,50-70#,70-140# |
AFS35-45,AFS25-35,AFS45-55, AFS55-65,AFS60-70,AFS70-80 |
|
Shell molding, resin coated sand casting |
50-100#,70-140#,100-200# |
AFS55-65,AFS60-70,AFS70-80, AFS95-110 |
|
Lost foam casting coating |
140-270#,-200# |
|
|
Molding sand alcohol-based coating |
-200# |
|
|
3D printing, precision casting, investment casting |
-140# |
|
