Product Details:
|
| Product Name: | Green SiC 99.11% | Color: | Green |
|---|---|---|---|
| Application: | Surface Treatment Of Glass And Ceramics | Usage: | Grinding |
| Abrasive Grain Sizes: | F16-F2000 | Hardness: | 9.5 |
| Highlight: | 9.5 Mohs Carborundum,GC150# Silicon Carbide,Carborundum Silicon Carbide |
||

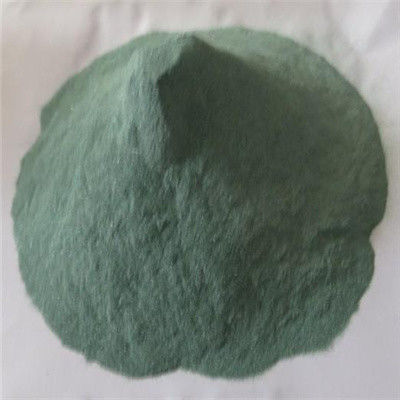

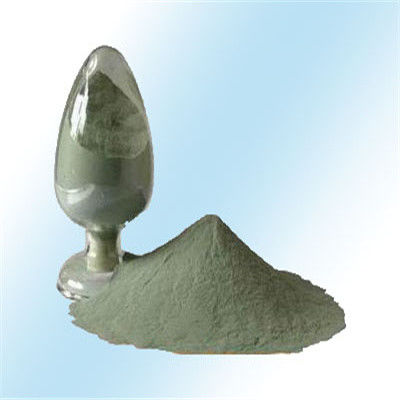

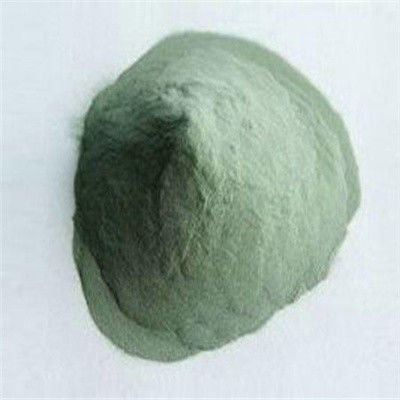

GC150# Green Silicon Carbide SiC 98% High Purity for Grinding Hard Alloy
Green Silicon Carbide Introduction
The green silicon carbide granular sand is a non-metallic mineral product produced by using quartz sand (SiO2), petroleum coke (C) and sodium chloride (NaCL) as basic materials at a temperature of 1800 ° C or higher, and has high hardness.
| Purpose | Specification | Chemical Composition (%) | Magnetic material content(%)max | |||
| Abrasives grade | SiC min | F.C max | Fe2O3max | |||
| grain | 12-80 | 99 | 0.20 | 0.2 | 0.0180 | |
| 90-150 | 98.5 | 0.25 | 0.5 | 0.0150 | ||
| 180-220 | 97.5 | 0.25 | 0.7 | 0.0120 | ||
| micropowder | 240-4000 | 96 | 0.30 | 0.8 | — | |
| Refractory grade | Group Size |
0-1mm 1-3mm 3-5mm 5-8mm |
99 | 0.35 | 0.7 | — |
| Fine Powder |
-180mesh -200mesh -240mesh -320mesh |
98 | 0.35 | 0.7 | — | |
| color | green | |||||
| Hardness(mohs) | 9.15 | |||||
| Melting point(℃) | 2250 | |||||
| Maximum service temperature(℃) | 1900 | |||||
| Ture density(g/cm3) | 3.9 | |||||
| Available Sizes | GRIT | JIS | #16 #20 #24 #30 #36 #46 #54 #60 #70 #80 #90 #100 #120 #150 #180 #220 |
| FEPA |
F16 F20 F22 F24 F30 F36 F40 F46 F54 F60 F70 F80 F90 F100 F120 F150 F180 F220 |
||
| Powder | JIS |
#240 #280 #320 #360 #400# #500 #600 #700 #800 #1000 #1200 #1500 #2000 #2500#3000 #4000 #6000 |
|
| FEPA | F230 F240 F280 F320 F360 F400 F500 F600 F800 F1000 F1200 F1500 |
Green Silicon Carbide Advantages:
Green Silicon Carbide Application
Blasting, surface Treatment for glass, ceramic, etc.
Ceramic products
Raw material of GC grinding wheel, sandpaper, abrasive cloth suitable for marble and granite.
Grinding hard alloy, non-ferrous metal, plastic, etc.
Raw material of Whetstone, oilstone, grinding stone, abrasive stones and so on.
Green Silicon Carbide Packing
1. 25kg woven bag, 40 woven bags/jumbo bag.
2. 25kg woven bag, 40 woven bags/pallet
3. 25kg paper bag, 40 paper bags/pallet
4. 25kg paper bag, 40 paper bags/paper box
