Product Details:
|
| Product Name: | Green SiC 99.21% | SiC Content: | 99.21% |
|---|---|---|---|
| Application: | Bonded & Industrial Abrasives | Hardness:: | Knoop 2600 |
| Elting Point:: | Sublimes At 4892°F (2700°C) | Specific Gravity:: | 3.2 G/cc |
| Highlight: | GC120# Green Silicon Carbide,99.21% Green Silicon Carbide,GC120# Abrasive Silicon Carbide |
||

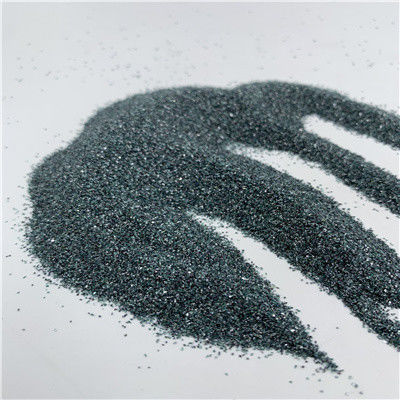

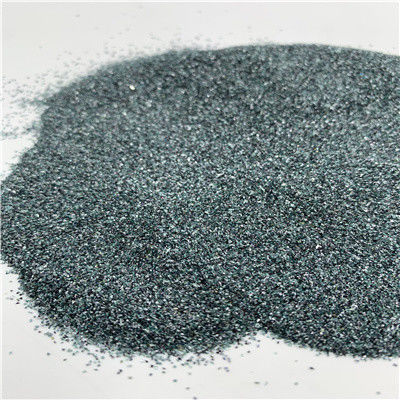

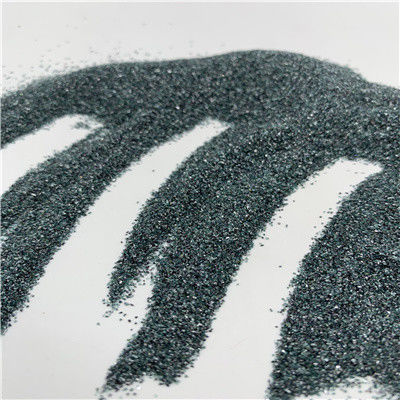

GC120# Green Silicon Carbide SiC 98% High Purity For Bonded & Industrial Abrasives
Green Silicon Carbide Introduction
Green Silicon Carbide (SiC) is an extremely hard (Mohs 9.4 / 2600 Knoop) man made mineral that possesses high thermal conductivity and high strength at elevated temperatures (at 1000°C, SiC is 7.5 times stronger than Al2O3). SiC has a modulus of elasticity of 410 GPa, with no decrease in strength up to 1600°C, and it does not melt at normal pressures but instead dissociates at 2600°C.
| Purpose | Specification | Chemical Composition (%) | Magnetic material content(%)max | |||
| Abrasives grade | SiC min | F.C max | Fe2O3max | |||
| grain | 12-80 | 99 | 0.20 | 0.2 | 0.0180 | |
| 90-150 | 98.5 | 0.25 | 0.5 | 0.0150 | ||
| 180-220 | 97.5 | 0.25 | 0.7 | 0.0120 | ||
| micropowder | 240-4000 | 96 | 0.30 | 0.8 | — | |
| Refractory grade | Group Size |
0-1mm 1-3mm 3-5mm 5-8mm |
99 | 0.35 | 0.7 | — |
| Fine Powder |
-180mesh -200mesh -240mesh -320mesh |
98 | 0.35 | 0.7 | — | |
| color | green | |||||
| Hardness(mohs) | 9.15 | |||||
| Melting point(℃) | 2250 | |||||
| Maximum service temperature(℃) | 1900 | |||||
| Ture density(g/cm3) | 3.9 | |||||
| Available Sizes | GRIT | JIS | #16 #20 #24 #30 #36 #46 #54 #60 #70 #80 #90 #100 #120 #150 #180 #220 |
| FEPA |
F16 F20 F22 F24 F30 F36 F40 F46 F54 F60 F70 F80 F90 F100 F120 F150 F180 F220 |
||
| Powder | JIS |
#240 #280 #320 #360 #400# #500 #600 #700 #800 #1000 #1200 #1500 #2000 #2500#3000 #4000 #6000 |
|
| FEPA | F230 F240 F280 F320 F360 F400 F500 F600 F800 F1000 F1200 F1500 |
Green Silicon Carbide Advantages:
Green Silicon Carbide Application
1. It is suitable for grinding high-speed, high carbon steel
2. High-grade refractory materials
3. Abrasives tool
4. Grinding and polishing
5. Ceramics
6. LED
7. Sandblasting
8. Aviation
9. wire-electrode cutting
Green Silicon Carbide Packing
1. 25kg woven bag, 40 woven bags/jumbo bag.
2. 25kg woven bag, 40 woven bags/pallet
3. 25kg paper bag, 40 paper bags/pallet
4. 25kg paper bag, 40 paper bags/paper box
