Product Details:
|
| Product Name: | High Purity Silicon Carbide | SiC Content: | 99%min |
|---|---|---|---|
| Application: | Vitrified & Resinoid Grinding Wheels, Honing Stones, Blasting, Compounds, Lapping, Polishing | Melting Point:: | Sublimes At 4892°F (2700°C) |
| Free C: | 0.2%max | Fe: | 0.05% |
| High Light: | #220 Polishing Silicon Carbide,#220 Silicon Carbide Abrasive,100 Grit Silicon Carbide |
||

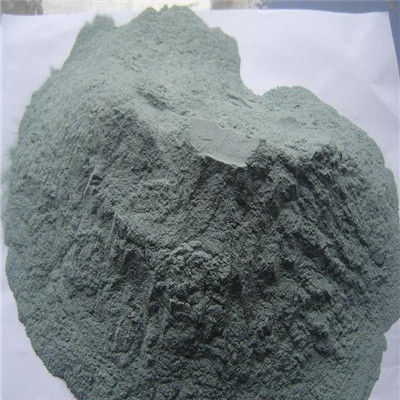

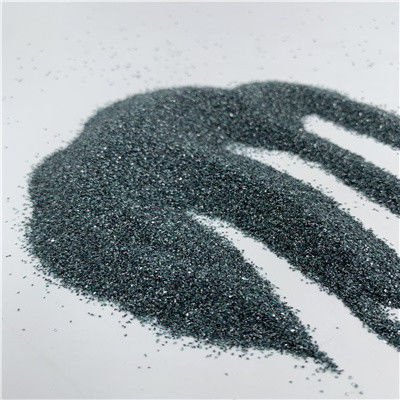

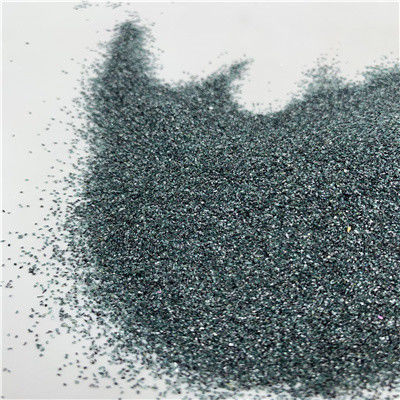

Green Silicon Carbide For Vitrified & Resinoid Grinding Wheels, Honing Stones, Blasting, Compounds, Lapping, Polishing
Green Silicon Carbide Introduction
Silicon Carbide is produced by heating silica sand and a carbon source, typically petroleum coke, to high temperatures in a large, open furnace. The result of this high temperature process is the crystalline formation of Silicon Carbide grains, of both Green and Black coloring. The color difference is due to the purity of the silicon carbide, green SiC being higher purity due to its closer proximity to the heat source of the furnace.
| Purpose | Specification | Chemical Composition (%) | Magnetic material content(%)max | |||
| Abrasives grade | SiC min | F.C max | Fe2O3max | |||
| grain | 12-80 | 99 | 0.20 | 0.2 | 0.0180 | |
| 90-150 | 98.5 | 0.25 | 0.5 | 0.0150 | ||
| 180-220 | 97.5 | 0.25 | 0.7 | 0.0120 | ||
| micropowder | 240-4000 | 96 | 0.30 | 0.8 | — | |
| Refractory grade | Group Size |
0-1mm 1-3mm 3-5mm 5-8mm |
99 | 0.35 | 0.7 | — |
| Fine Powder |
-180mesh -200mesh -240mesh -320mesh |
98 | 0.35 | 0.7 | — | |
| color | green | |||||
| Hardness(mohs) | 9.15 | |||||
| Melting point(℃) | 2250 | |||||
| Maximum service temperature(℃) | 1900 | |||||
| Ture density(g/cm3) | 3.9 | |||||
| Available Sizes | GRIT | JIS | #16 #20 #24 #30 #36 #46 #54 #60 #70 #80 #90 #100 #120 #150 #180 #220 |
| FEPA |
F16 F20 F22 F24 F30 F36 F40 F46 F54 F60 F70 F80 F90 F100 F120 F150 F180 F220 |
||
| Powder | JIS |
#240 #280 #320 #360 #400# #500 #600 #700 #800 #1000 #1200 #1500 #2000 #2500#3000 #4000 #6000 |
|
| FEPA | F230 F240 F280 F320 F360 F400 F500 F600 F800 F1000 F1200 F1500 |
Green Silicon Carbide Advantages:
Green Silicon Carbide Application
Green Silicon Carbide is extremely pure. It can be manufactured into complex bonded shapes or used as a loose abrasive. Applications/uses include vitrified & resinoid grinding wheels, honing stones, blasting grain/powder, compounds, lapping, polishing and many more.
Green Silicon Carbide Packing
1. 25kg woven bag, 40 woven bags/jumbo bag.
2. 25kg woven bag, 40 woven bags/pallet
3. 25kg paper bag, 40 paper bags/pallet
4. 25kg paper bag, 40 paper bags/paper box
